Radiator Fan Kit
JCR Speed Shop
$239.00
Avoid overheating with our radiator fan kit. Proven by our test riders to lower the operating temp of the 2018-20 Honda CRF250R and 2019-20 CRF250RX.
Mounts to the stock radiator and is powered by the motorcycle battery. Includes a digital thermostat with adjustable temperature set point.

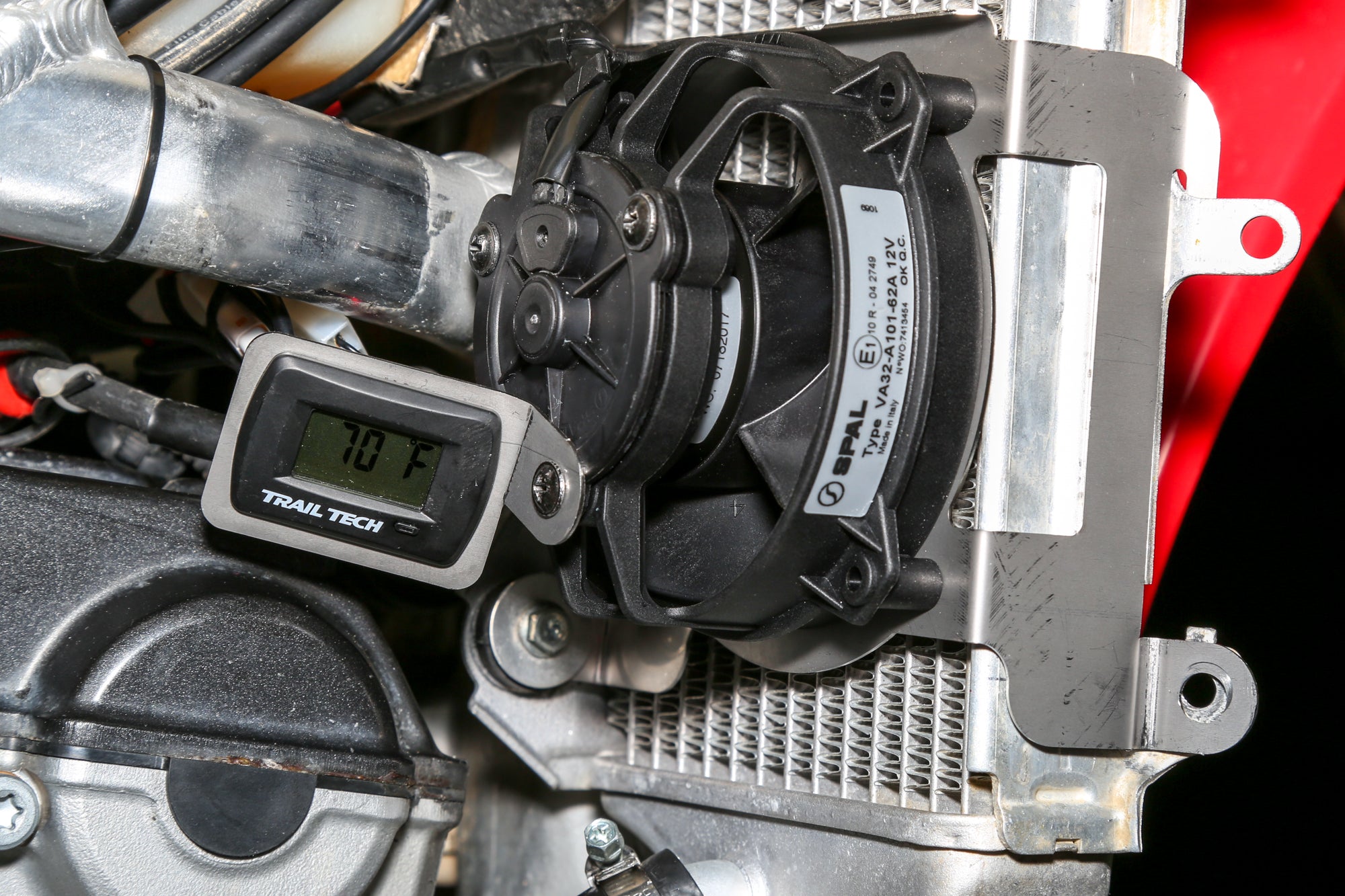

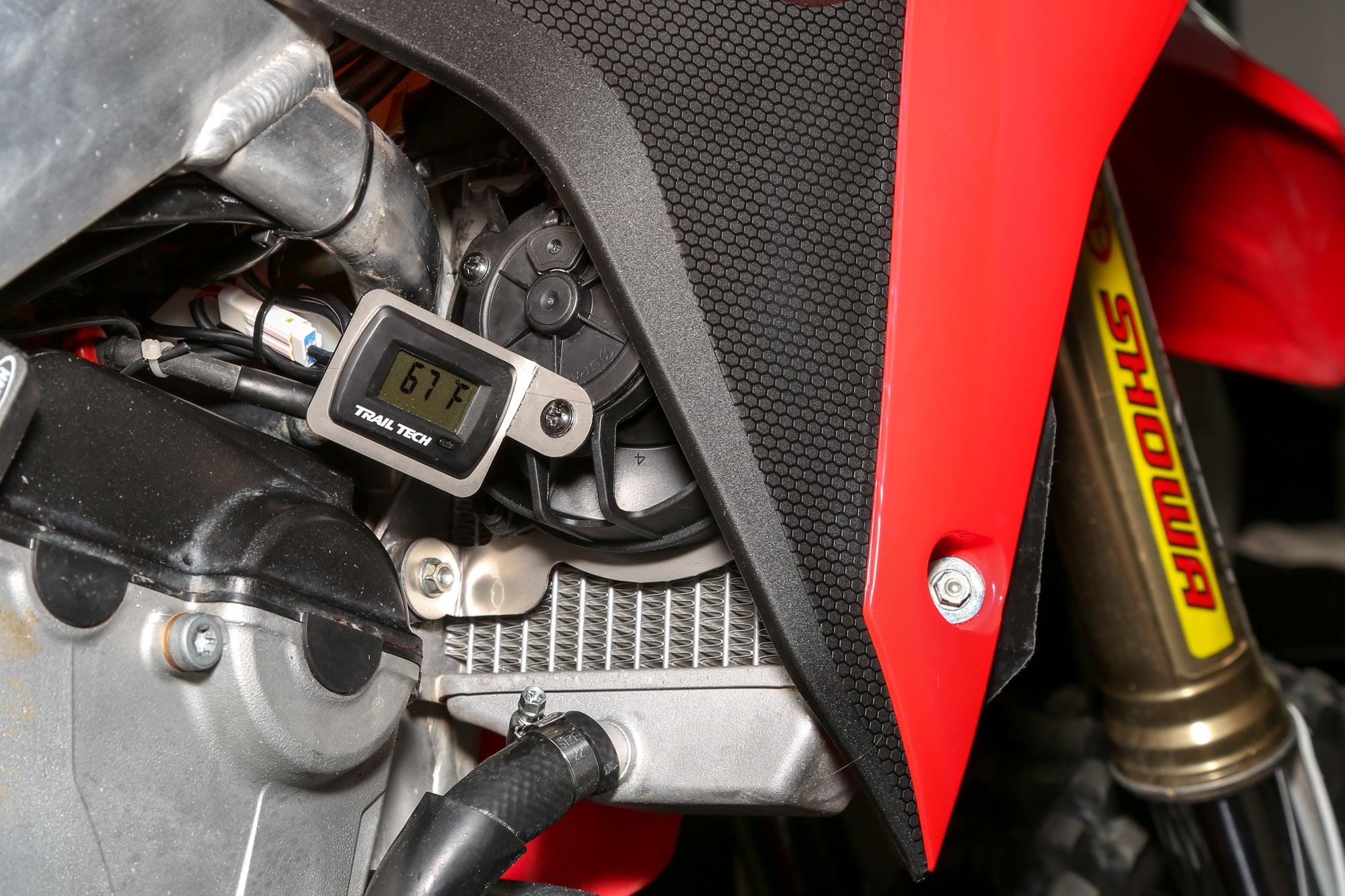

The temperature sensor mounts in the cooling fins of the radiator- eliminating the need to modify the radiator itself. No welding required. Simply mount the fan to the stainless steel bracket, then attach to the existing radiator mounting points.

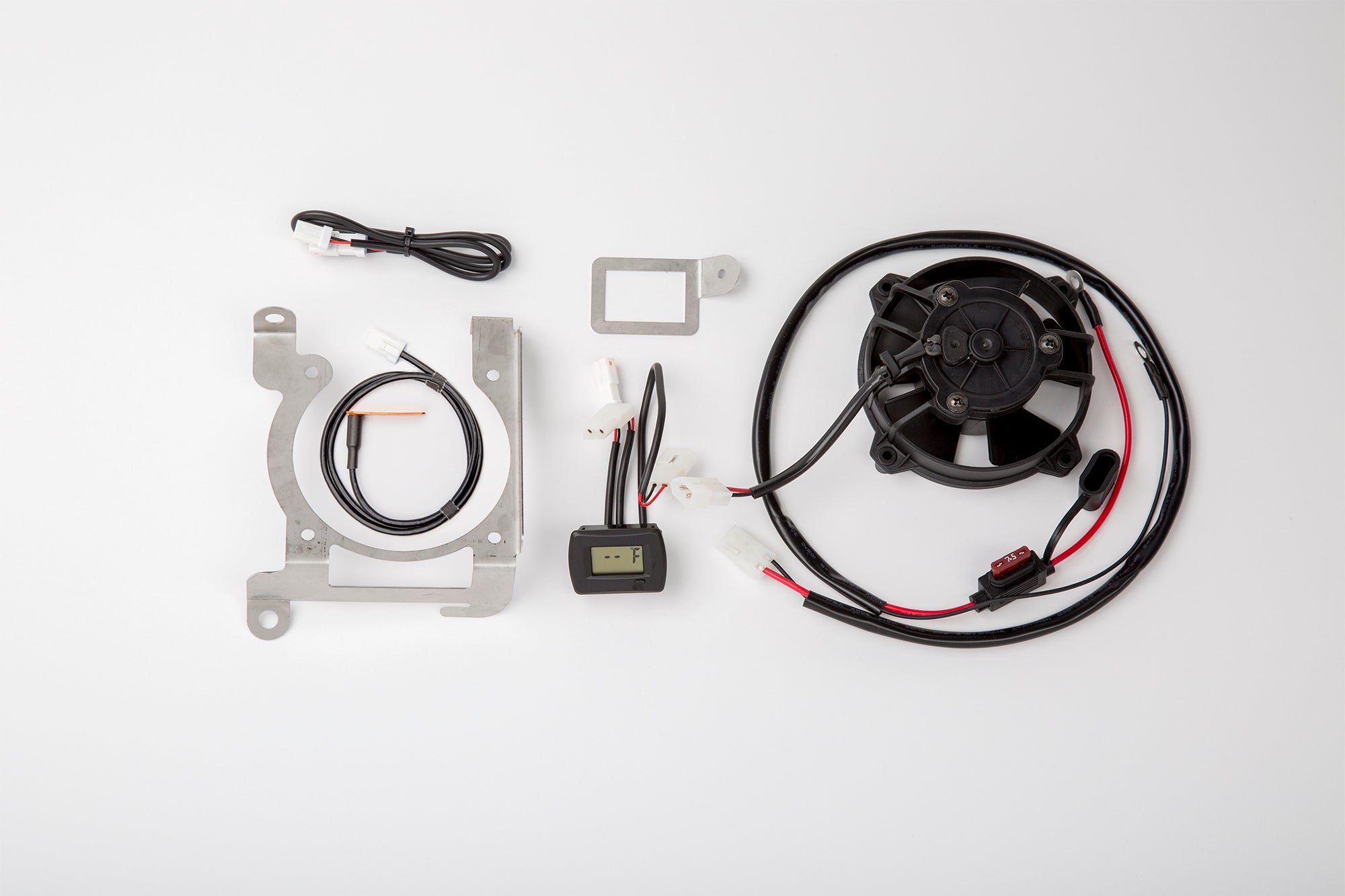

Includes all necessary wiring and installation instructions.
Specifications:
| FEATURES | DESCRIPTION |
|---|---|
| FAN TRIGGER POINT | -150°F to 200°F |
| TEMP SENSOR | -40°C/F - 300°C/575°F |
| FAN AIR FLOW | 147 CFM |
| POWER | DESCRIPTION |
|---|---|
| POWER REQUIREMENTS | 10.5V TO 14.5V DC ONLY |
| AMP DRAW | 3 AMPS |
| WATT DRAW | 30 WATTS |
Physical Dimensions109 x 109 x 48mm
(4.29 x 4.29 x 1.89")
(4.29 x 4.29 x 1.89")
| PHYSICAL FEATURES | DESCRIPTION |
|---|---|
| PHYSICAL WEIGHT | 23 OZ. (652G) |
| SCREEN SIZE | 23.7X13.6MM (.93X.53IN) |
