Trail Tech Endurance II Kit

Trail Tech

$84.95

Share:

Introducing Endurance II, the follow-up to Trail Tech's Endurance motorcycle speedometer. Building on the feature set of the popular Endurance meter, Endurance II adds a full-time back light and hardwired power connection. The latest concept in motorsport on-board computation. A combined effort from experts in software, electronics, and mechanical design - each feature of this 4th generation product is carefully crafted and constructed with the enthusiast in mind.

Fully Functional Motorcycle Speedometer:

  • Made from top-end materials with quality and ease of use in mind.
  • Current speed.
  • Average speed.
  • Maximum speed.
  • Full-time, bright backlight.
  • Two independent trip odometers.
  • Odometer (track total miles).
  • Riding time.
  • Trip time - stopwatch.
  • Accumulated riding time (track total hours).
  • Maintenance reminder (trigger from Hours or ODO).
  • Increment / decrement trip distance function.
  • Clock.

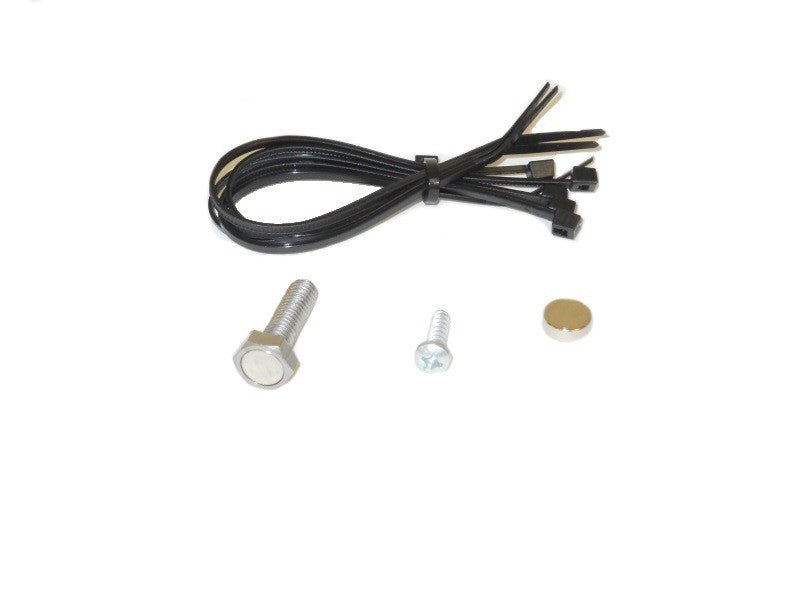

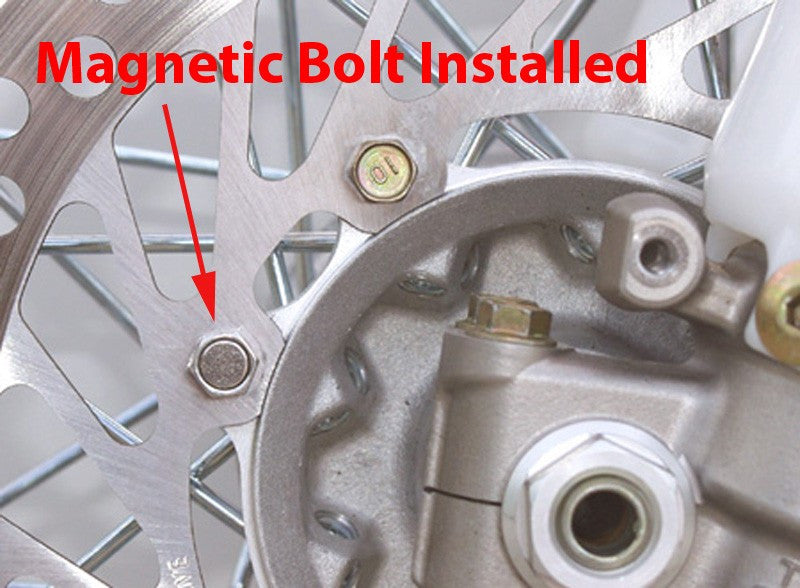

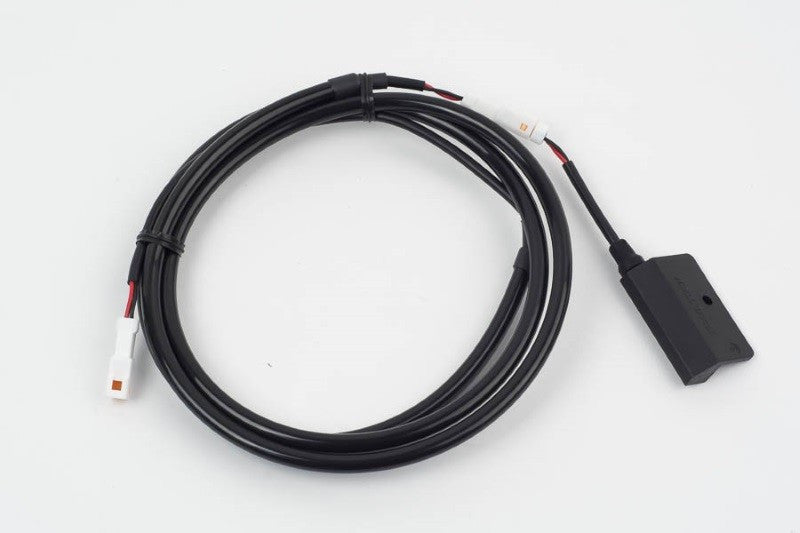

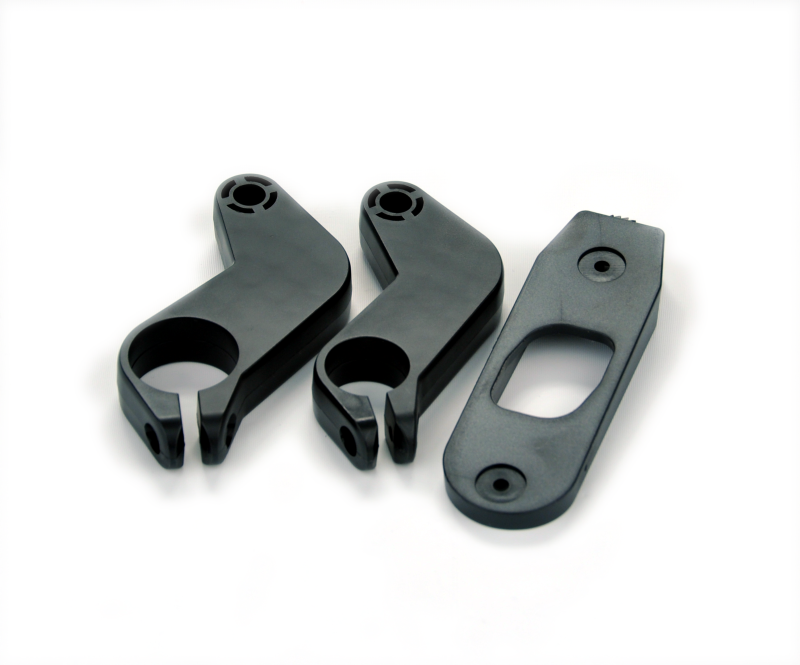

  • For a complete installation, kit also includes: Magnetic sensor, wheel sensor, mount, and power lead.

Detailed Specifications:

  • Speed range ("SPD" on display): 0 - 199 KPH/MPH.
  • Maintenance reminder range ("Oil/Care" on display): 0 - 9999 KM/M.
  • Distance range ("DST" on display): 0 - 19999 KM or M.
  • Accumulated run time range ("ART" on display): 0 - 9999 hours.
  • Odometer range ("ODO" on display): 0 - 199999 KM or M.
  • External power input: 9 - 300 VAC / 9 - 50 VDC (No polarity requirements).
  • Internal battery: 3V CR2032.
  • Battery life: 1 year.

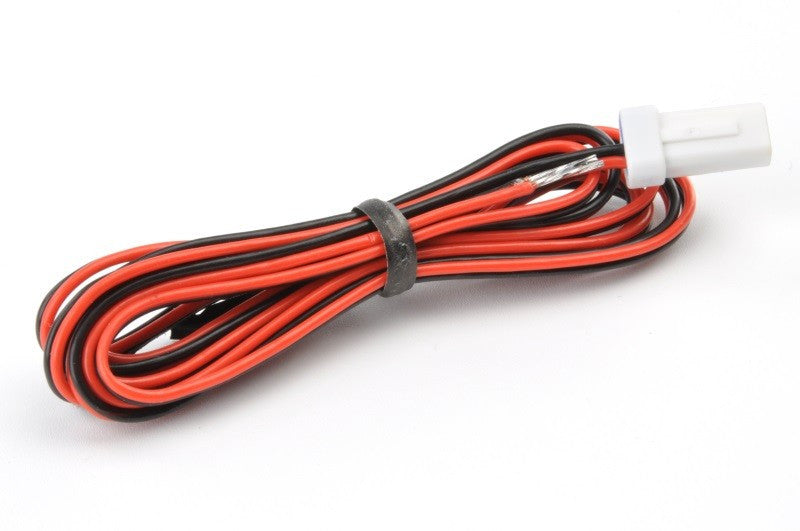

  • Power wire: Red / black 20-gauge wire.
  • Backlight: L.E.D. group.
  • Screen: 63.8 x 17.6 mm (2.5 x 0.69").
  • Physical dimensions (WxHxD): 104.76 x 40.91 x 26.8 mm (4.12 x 1.6 x 1.17").
  • Physical weight: 3.9 ounces (110 grams).
  • Operation temperature: 0 - 60°C (32 - 140°F).
  • Storage temperature: -20 - 80°C (0 - 175°F).
